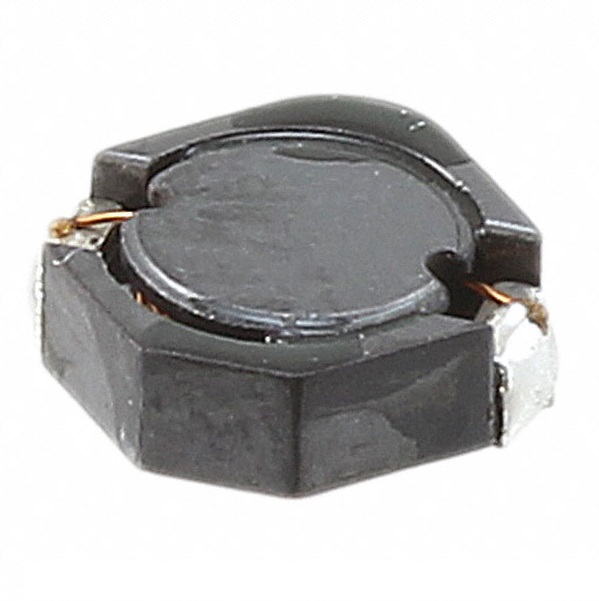

CDRH4D18CLDNP-100PC

SMD POWER INDUCTOR
10uH - 0.6A - 88/110mOHm



SUMIDA
Manufacturer
SUMIDA
Manufacturer Ref.
CDRH4D18CLDNP-100PC
Specifications

Type Shielded
Inductance 10uH
Tolerance 10%
Rated Current 0.6 A
DC Max. Resistance 0.110 Ohm
Pins 2
Temperature Range -40ºC / 105ºC
Package / Case SMD
Measures 5.1 x 5.1 x 2 mm
Net Weight 135 mg
